D100 Weighing Indicator

Intelligent weighing system


The MARELEC D100 is an intelligent product selection keyboard. It is robust and easy to use. With a few touches of the indicator, you can select the species, size, quality, and presentation.


Key benefits

  • Robustness
  • 48 standard species, up to 100 programmable species
  • Up to 1500 programmable species/size combinations
  • Very intuitive GUI with touchscreen
  • Production management software
  • Customized design
read more

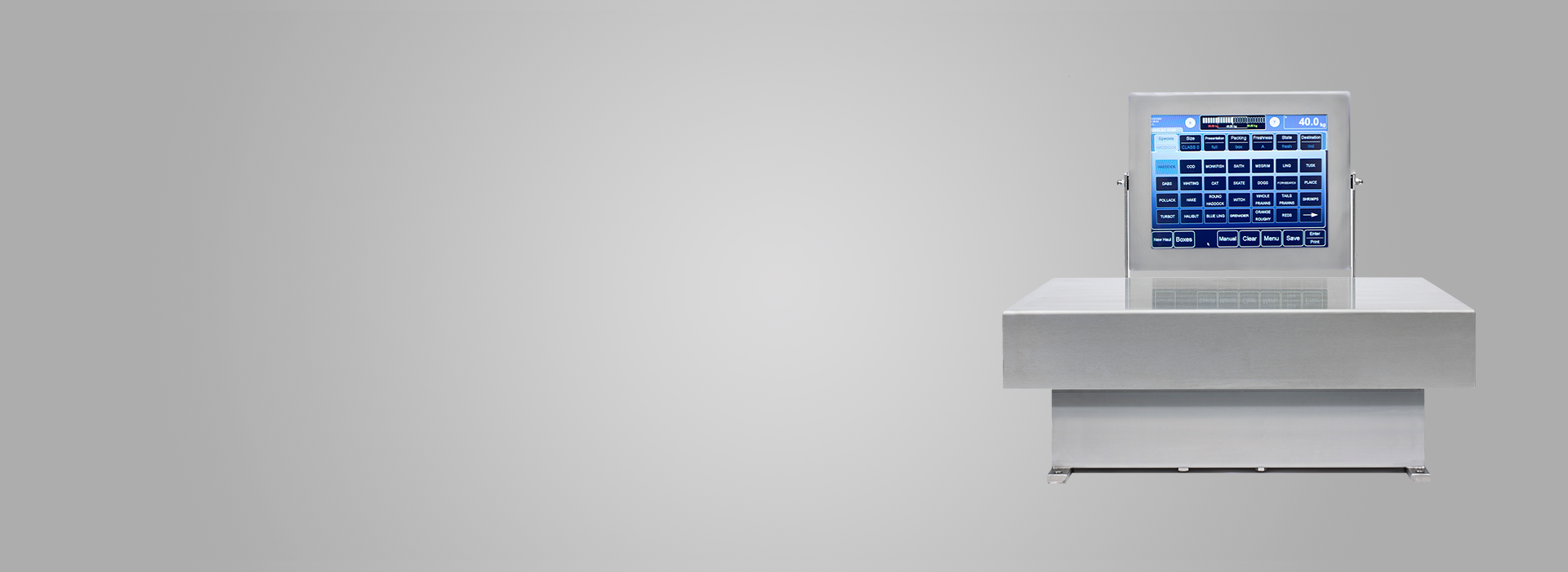

The MARELEC D100 Weighing Indicator allows you to weigh products with the best possible accuracy without compromising on robustness and user-friendliness. The touchscreen allows you to select the quality, size, and species. This data can be transferred to our MATRIX software and can then be used to optionally print labels. It is also possible to create reports and integrate conversions such as weight/loss factors.

Specifications

  • Accuracy: < 0.1%
  • Speed: < 1 sec
  • Capacity: Several models, up to 75 kg
  • Touchscreen 21.5-inch FHD
  • TCP/IP connection
Contact MARELEC sales specialist

Robustness

MARELEC has extensive experience in the fishing industry. All of our equipment has a very sturdy and robust build in order to withstand to most demanding conditions.

Very intuitive GUI with touchscreen

The fish species that are weighed can be selected by simply touching the screen. You can also select the quality, size, etc.

Production management software

MATRIX enables the weights to be recorded in a database and reports to be generated. The report can be displayed in tables or graphically.

Reports can be generated for the catch percentage per species of fish and/or size. The total weight per species, date and size or trip can also be displayed.

Customized design

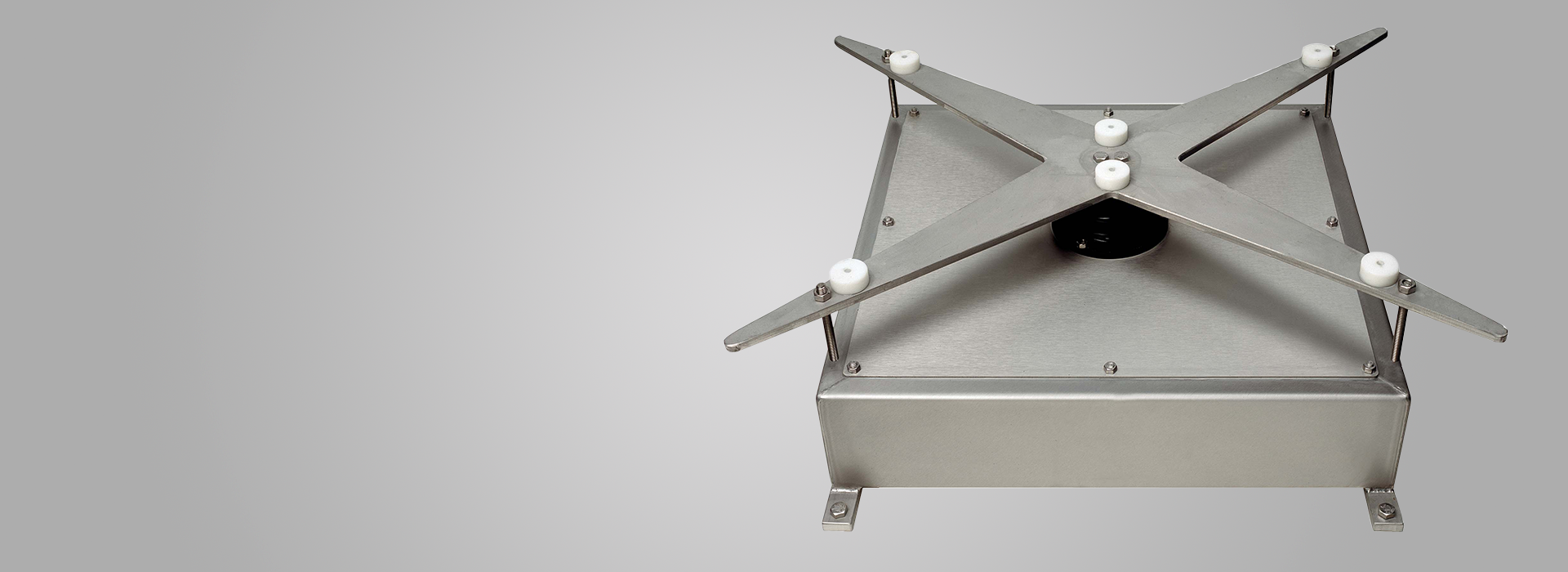

The D100 can be connected to the customized scale depending on the customer's application. Several standard weighing platforms are also available with a weighing capacity up to 75 kg.

Subject to modifications for technical progress
